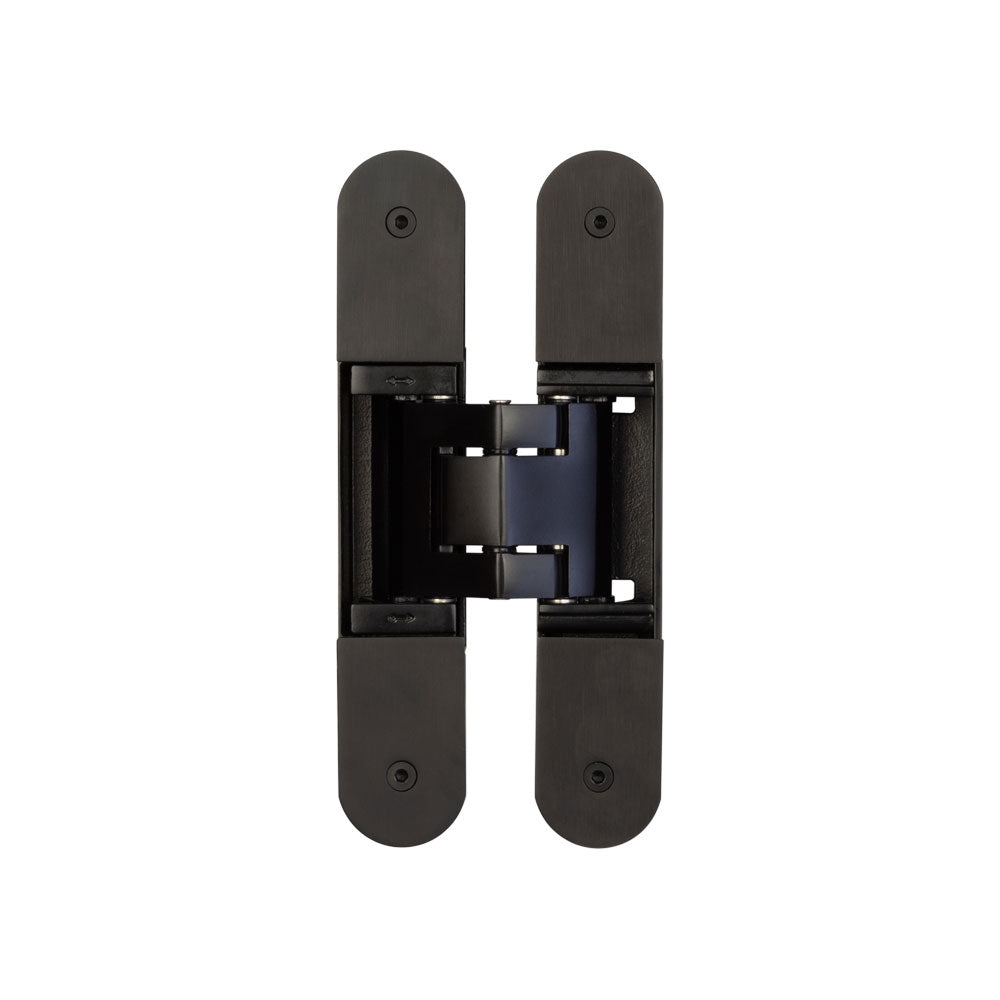

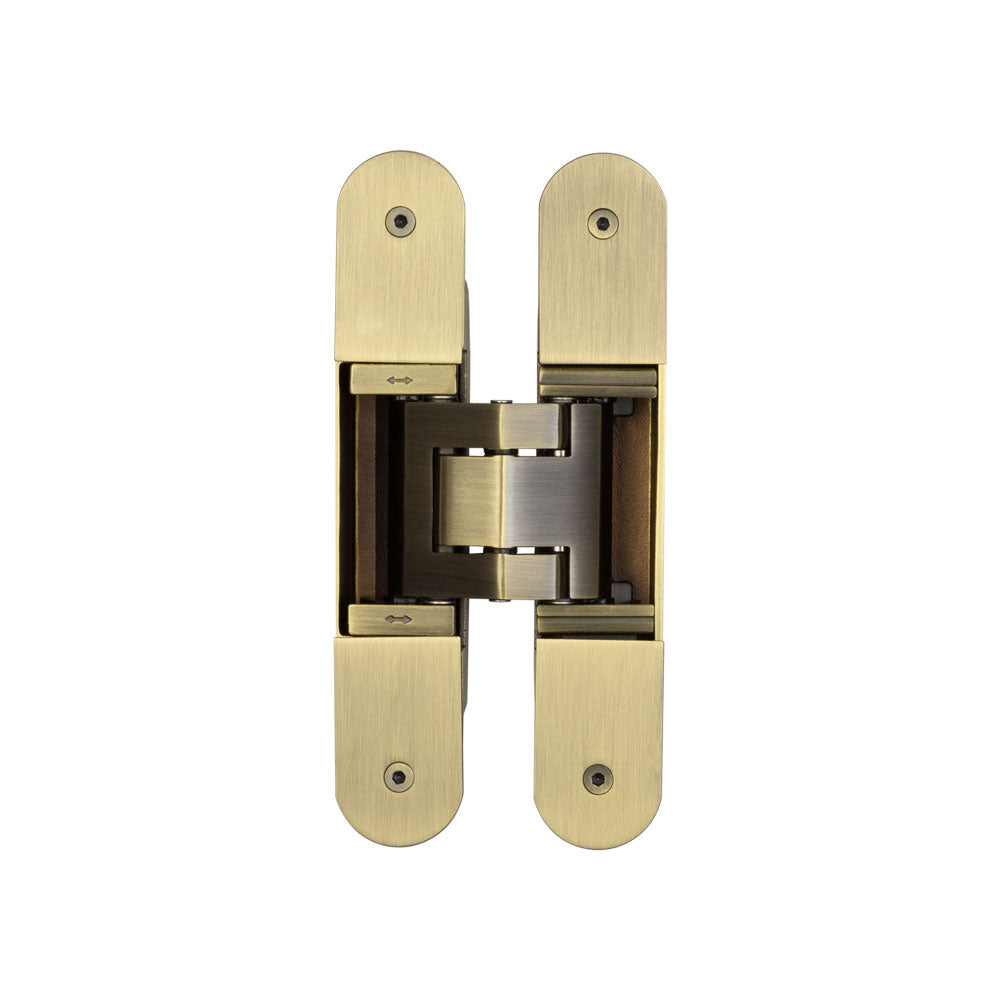

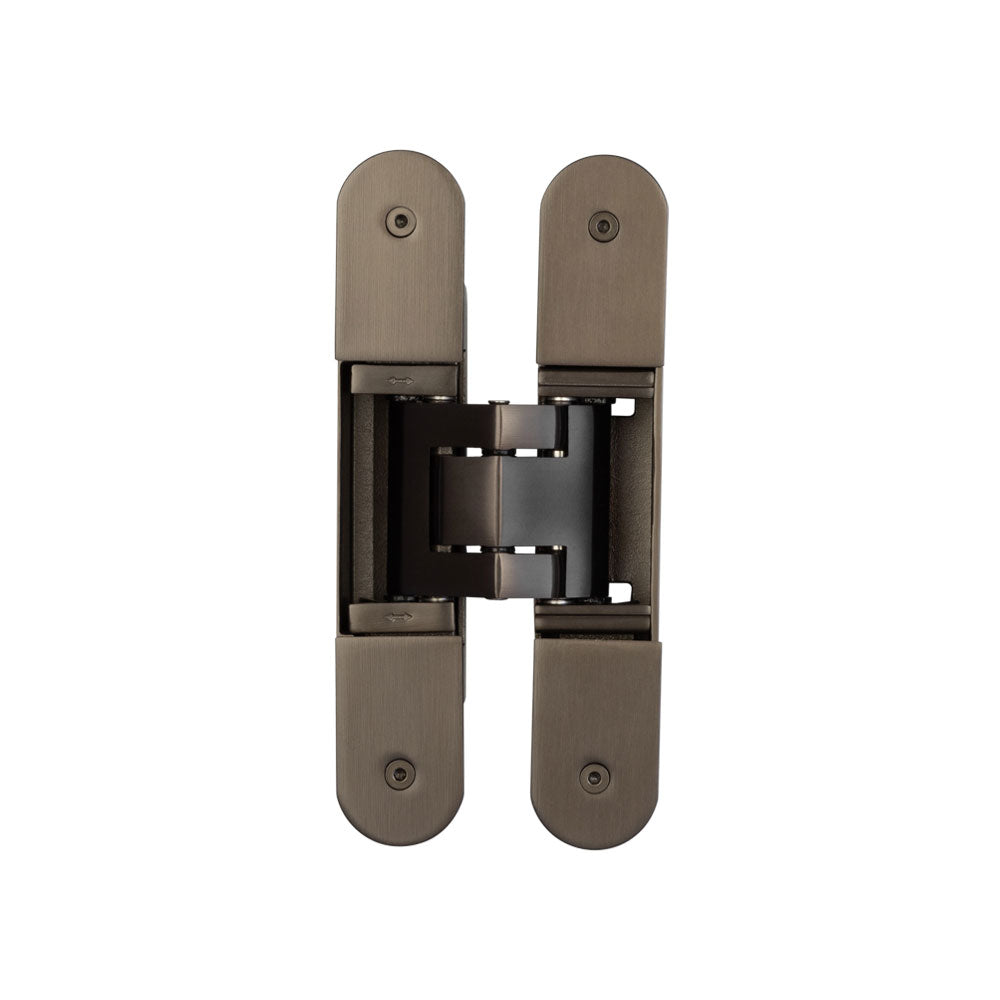

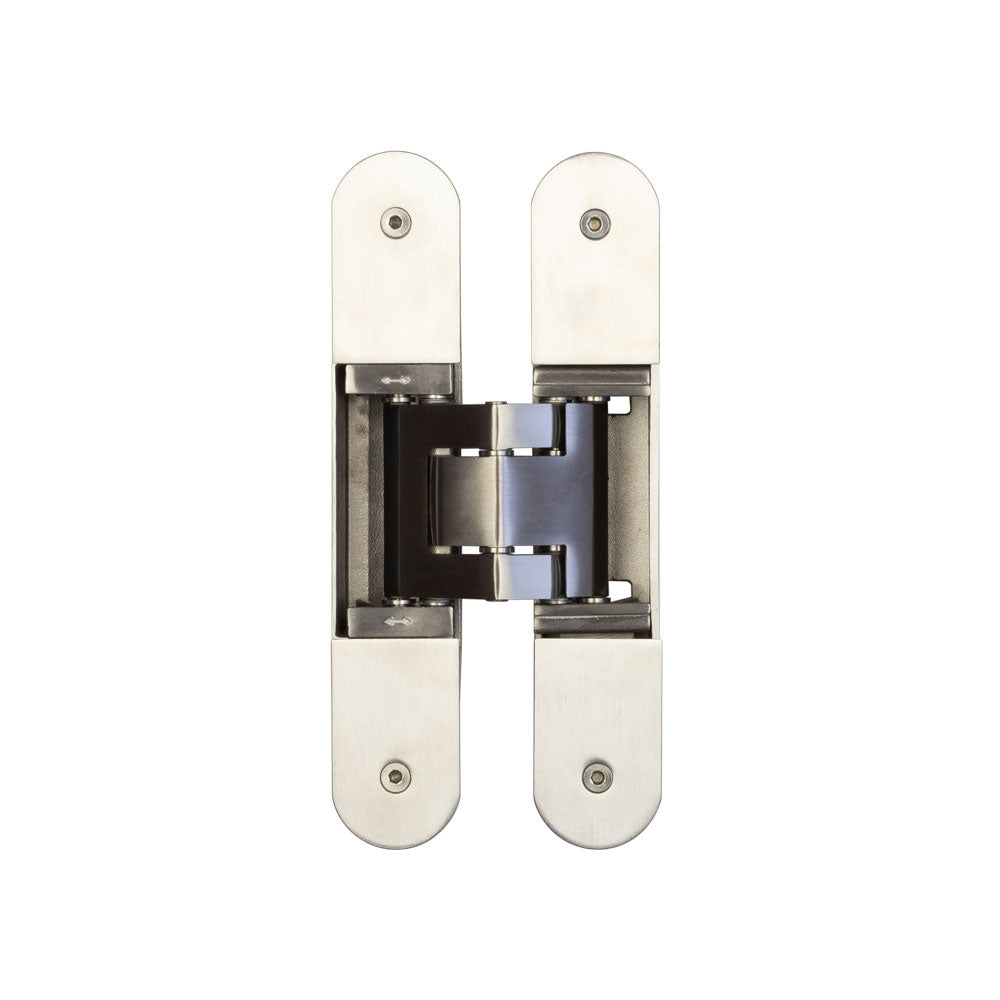

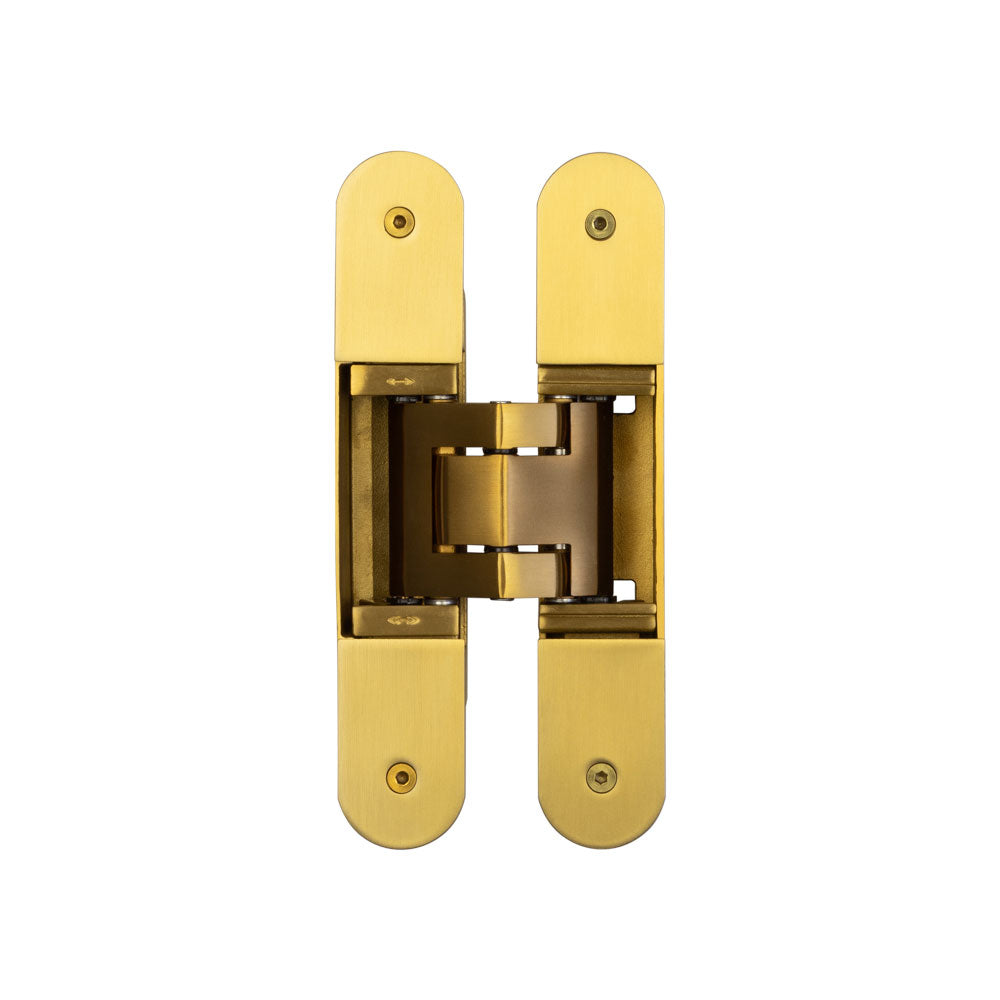

Ghost 160mm 3D Concealed Hinges

The Ghost 160mm 3D Concealed Hinge is a fully hidden hinge for internal residential and commercial doors, built for strength, smooth operation and a flush finish. It adjusts in three directions for precise alignment during installation. Sold as a single hinge.

KEY FEATURES

• Suitable For: Flush, unrebated quality timber doors
• Finish: Antique Brass, Black, Dark Bronze, Satin Brass and Satin Stainless Steel
• Adjustment: 3D: height, depth and lateral
• Material: 304 grade stainless steel
• Fixings: Concealed, with removable cover plates. Supplied with 2 Allen keys, 8 stainless steel wood screws and 4 cover plates
• Fire Rating: FD60 when used with 2mm graphite intumescent, sold separately
• Door Weight: Up to 120kg using 3 hinges
• Maintenance: Maintenance free
• Use: Internal, residential and commercial
• Mechanical Warranty: 5 years

DIMENSIONS

• Overall Size: 160 x 31.5 x 76.5mm
• Projection: 7.5mm
• Fixing Centres: 138mm
• Thickness: 7mm
• Suitable Door Thickness: 35 to 54mm

We recommend having the hinge in hand before any cutting or drilling.
