Fitting Jig for Ceam Hinges 1129 & 1130

Fitting Jig for the 1129 & 1130 Ceam 3D concealed hinge.

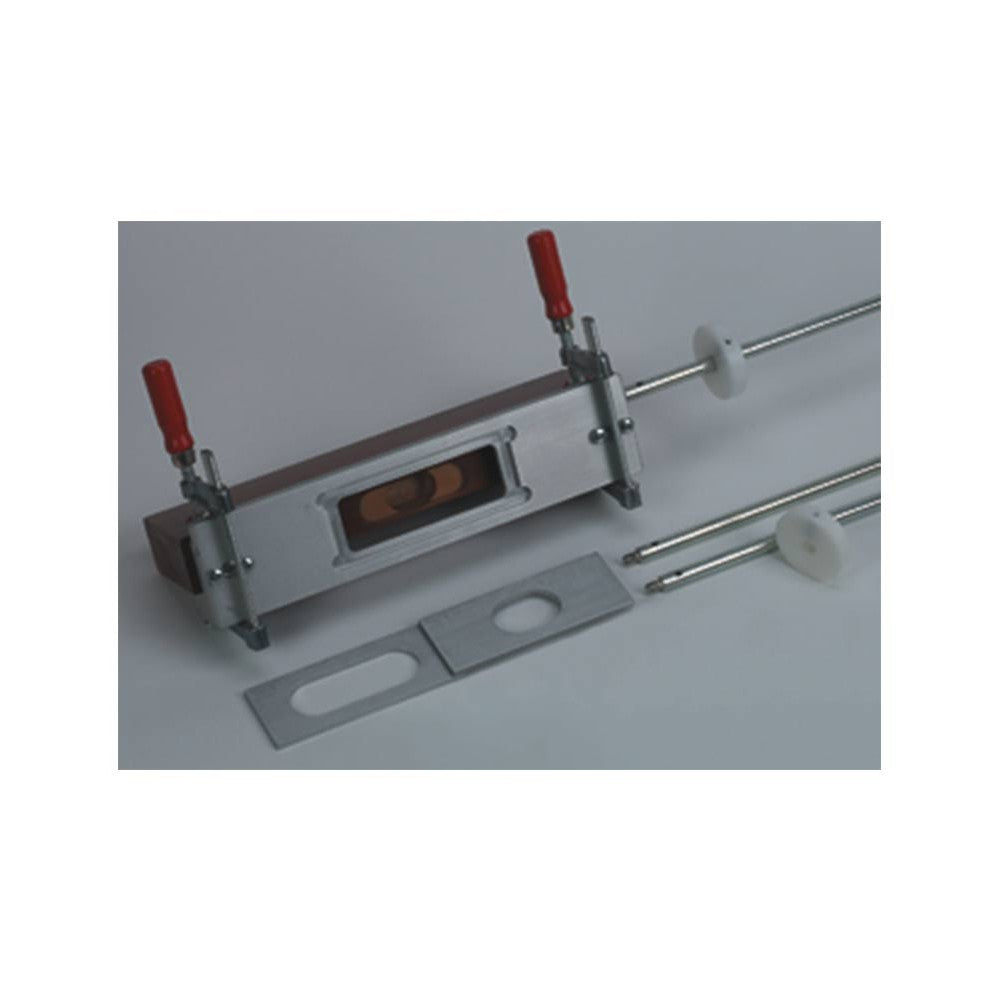

The drilling template, made of 5 mm thick aluminium plates, is composed by a central body and a double insert (sold separately from the body); it allows the implementation of the slots for all the invisible hinges. The strength of the materials guarantees precise slots executions with a manual pantograph (strong>16 mm/strong> diam. cutter and strong>27 mm/strong> external ring provided for all manual pantographs). For each hinge model, two types of insertions, easily replaceable, are used: one (A) to execute: the stroke slot and the other (B) for the internal depth slot.

Please order the template 1129 or 1130 with the fitting jig below.

Please allow approximately 3 - 5 working days for us to deliver this product. Delivery times may vary based on manufacturer stock levels.

We will contact you via email if your product exceeds the expected lead time found here.

If you require more accurate lead time information, please contact us.
